Anatomy of the Human Eye

The human eye is a complex optical organ that converts light into electrical signals the brain interprets as vision. Each structure plays a specific role in focusing light onto the retina, where photoreceptor cells begin the process of visual perception.

Cross-section of the human eye showing major anatomical structures

Light-Focusing Structures

Cornea — Transparent front surface providing ~2/3 of the eye's focusing power

Iris & Pupil — Controls the amount of light entering the eye

Lens — Fine-focuses light onto the retina (accommodation)

Ciliary Body — Muscles that change lens shape for near/far focus

Light-Detecting Structures

Retina — Light-sensitive tissue lining the back of the eye

Macula — Central retinal area responsible for detailed vision

Fovea — Tiny pit with highest concentration of cones (sharpest vision)

Optic Nerve — Transmits visual signals from retina to brain

Why This Matters for IRDs

Most inherited retinal diseases specifically affect the retina — the thin layer of tissue at the back of the eye where photoreceptors (rods and cones) are located. Some IRDs affect the retinal pigment epithelium (RPE), others affect photoreceptors directly, and some affect both. Understanding which structures are involved helps explain the specific symptoms of each condition.

The Retina: Layers & Cell Types

The retina is a remarkably complex tissue containing 10 distinct layers. Counterintuitively, light must pass through several layers of neurons before reaching the photoreceptors (rods and cones) at the back of the retina. This "inverted" design places the blood supply (choroid) directly behind the photoreceptors, which have extremely high metabolic demands.

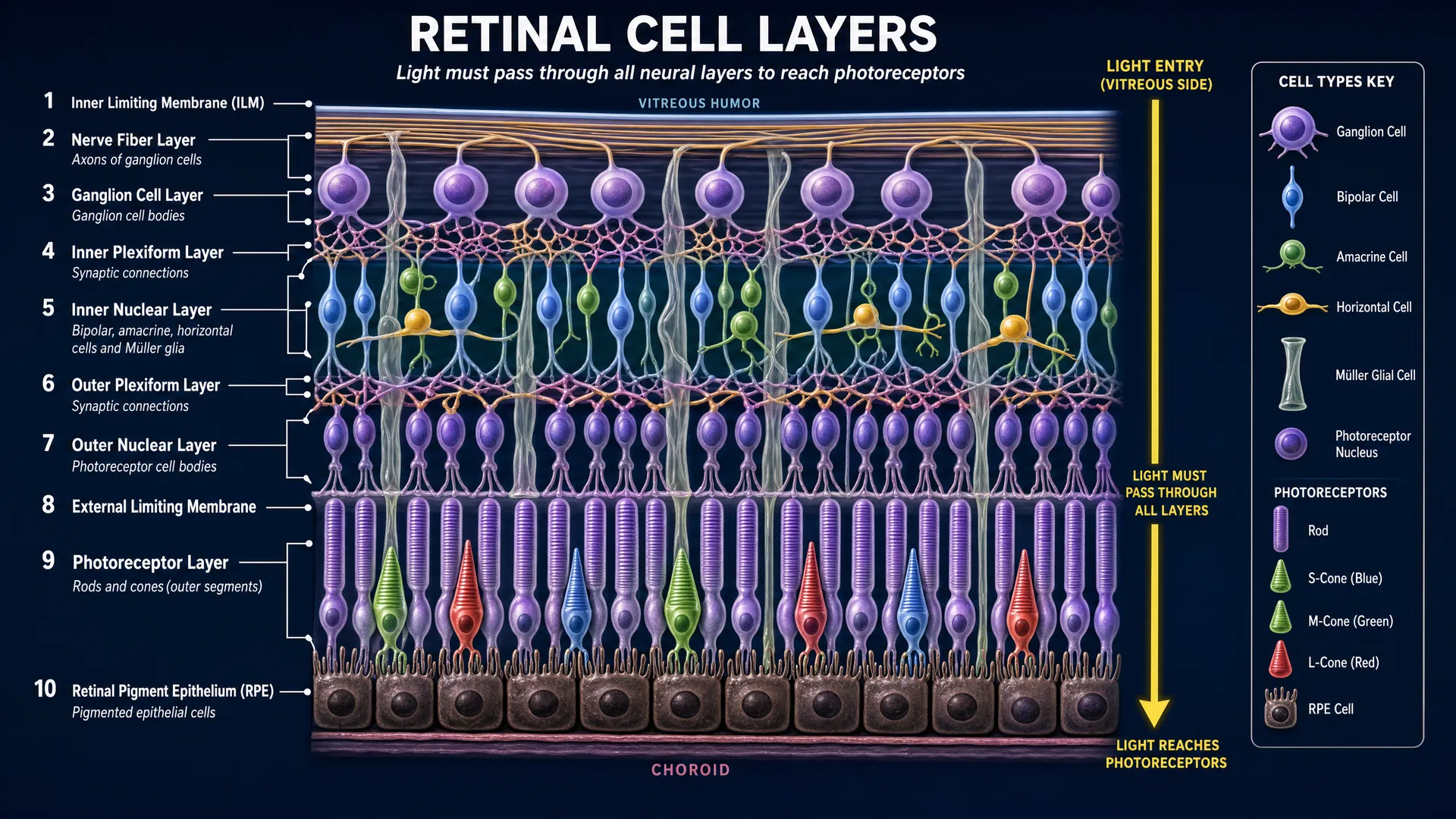

Cross-section of the retina showing all 10 layers and major cell types

Rods vs. Cones: Two Types of Photoreceptors

Feature

Rods

Cones

Number per eye

~120 million

~6 million

Location

Mostly peripheral retina

Concentrated in fovea/macula

Function

Dim-light (scotopic) vision

Bright-light (photopic) vision

No (monochrome only)

Yes (3 types: S, M, L)

Acuity

Low (many rods → 1 ganglion cell)

High (1:1 ratio in fovea)

Sensitivity

Very high (single photon detection)

Lower (need more light)

IRDs that affect them

Retinitis Pigmentosa, Choroideremia

Cone Dystrophy, Achromatopsia, Stargardt

The Retinal Pigment Epithelium (RPE)

The RPE is a single layer of pigmented cells that sits directly behind the photoreceptors. It performs critical support functions: recycling visual pigment (the visual cycle), phagocytosing shed photoreceptor outer segments, transporting nutrients, and absorbing stray light. Many IRDs — including Best Disease, RPE65-related Leber Congenital Amaurosis, and some forms of Retinitis Pigmentosa — involve RPE dysfunction. Luxturna (voretigene neparvovec), the first FDA-approved gene therapy for an IRD, targets the RPE65 gene in this layer.

The Visual Pathway: From Eye to Brain

Vision does not happen in the eye alone — it requires a complex neural pathway that carries signals from the retina to the visual cortex at the back of the brain. Understanding this pathway explains why damage at different points produces different types of vision loss.

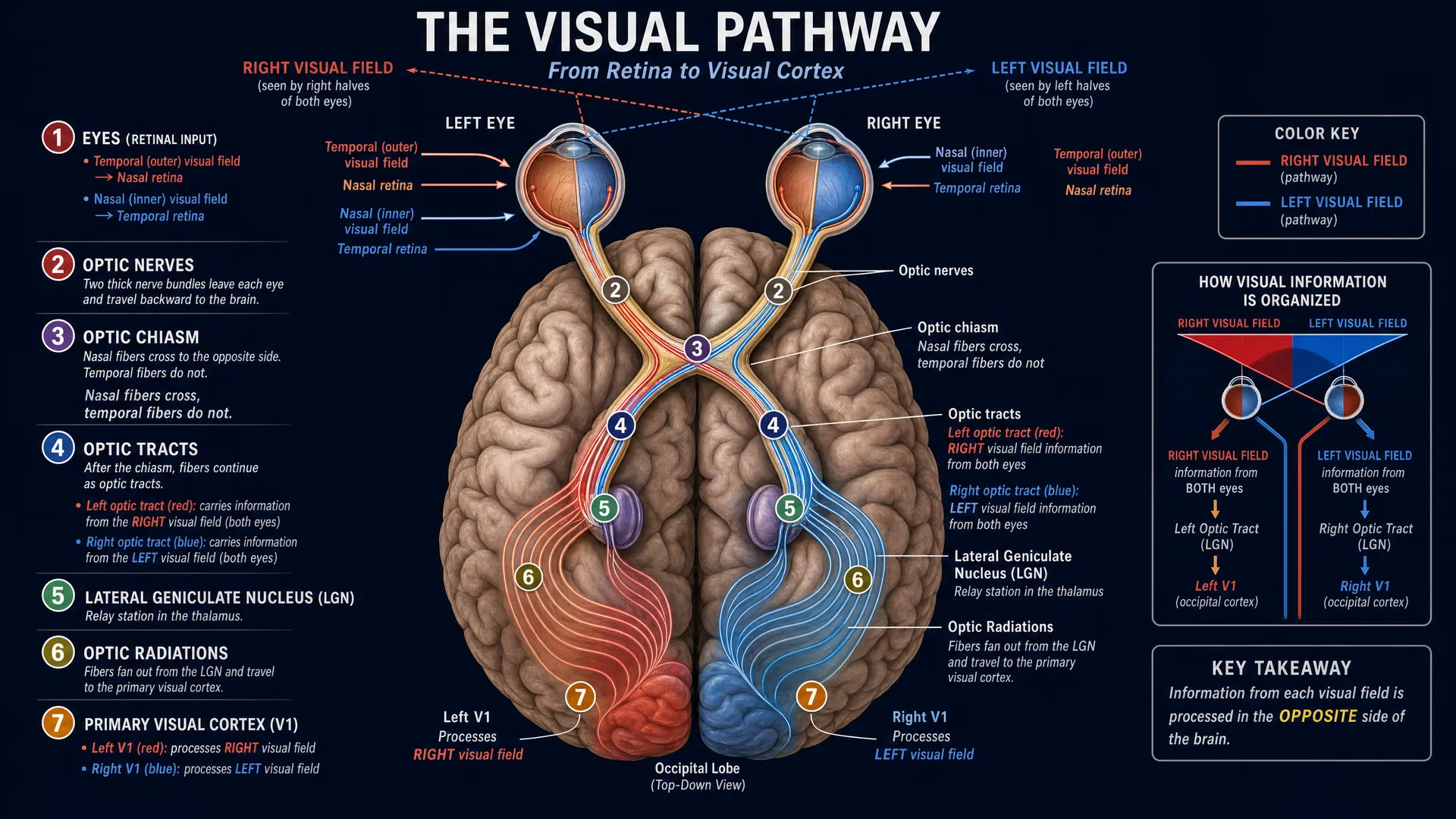

The visual pathway from retina to visual cortex, showing how information from each visual field crosses to the opposite brain hemisphere

The 7 Steps of Visual Processing

Retinal Photoreceptors

Rods and cones convert light into electrical signals (phototransduction)

Retinal Processing

Bipolar, amacrine, and horizontal cells process signals before they leave the eye

Optic Nerve

~1.2 million ganglion cell axons carry signals from each eye toward the brain

Optic Chiasm

Nasal fibers cross to the opposite side; temporal fibers stay ipsilateral

Lateral Geniculate Nucleus (LGN)

Thalamic relay station that organizes visual information by eye and type

Optic Radiations

Fan-shaped fiber bundles carry signals from LGN to the occipital lobe

Primary Visual Cortex (V1)

First cortical processing area; each hemisphere processes the opposite visual field

IRDs vs. Other Causes of Vision Loss

Inherited retinal diseases affect steps 1–3 of this pathway (the retina and optic nerve). Conditions affecting steps 4–7 (optic chiasm, LGN, visual cortex) are neurological rather than retinal and are not classified as IRDs. This distinction is important because gene therapies and retinal treatments target the eye itself — they cannot repair damage to the brain's visual processing centers.

Human color vision is based on the trichromatic theory: three types of cone photoreceptors, each sensitive to different wavelengths of light, work together to create our full-color perception. When one or more cone types are absent or dysfunctional — as occurs in several IRDs — color vision is impaired or absent.

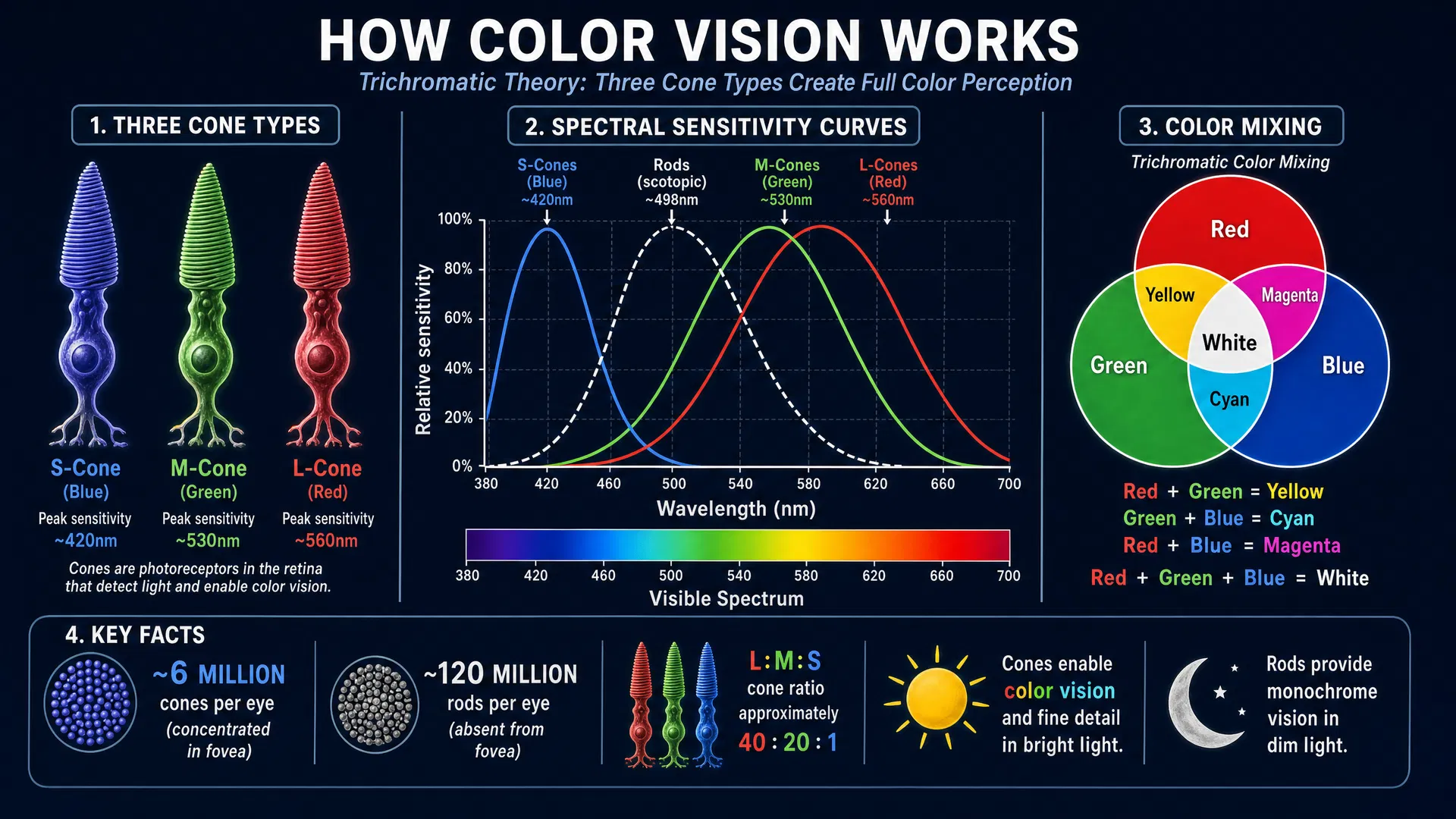

The three cone types and their spectral sensitivities enable full-color perception through trichromatic mixing

IRDs That Affect Color Vision

Your visual field is the total area you can see without moving your eyes. It spans approximately 200 degrees horizontally and 135 degrees vertically. Different regions of the visual field serve different purposes, and many IRDs characteristically affect specific regions — making visual field testing (perimetry) a key diagnostic and monitoring tool.

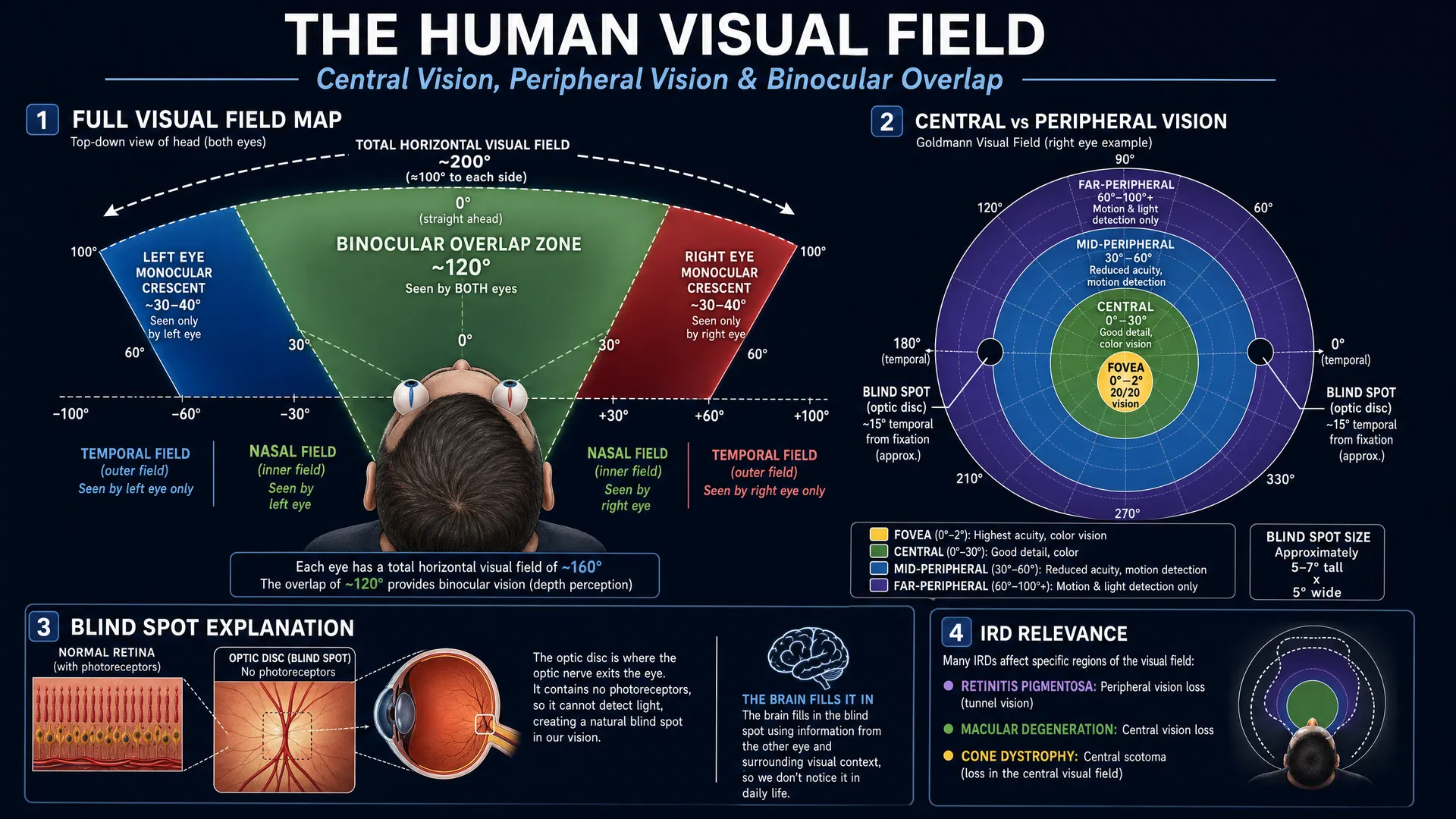

The human visual field showing binocular overlap, central vs. peripheral zones, and how IRDs affect different regions

Patterns of Visual Field Loss in IRDs

Peripheral Vision Loss ("Tunnel Vision")

The outer visual field progressively narrows, eventually leaving only a small central island of vision.

Conditions: Retinitis Pigmentosa, Choroideremia, Usher Syndrome, Gyrate Atrophy

Central Vision Loss (Central Scotoma)

A blind or blurred spot develops in the center of vision, making reading and face recognition difficult.

Conditions: Stargardt Disease, Best Disease, Cone Dystrophy, Macular Dystrophy

Ring Scotoma

A ring-shaped blind area in the mid-peripheral field, with both central and far-peripheral vision initially preserved.

Conditions: Some forms of RP (early stages), Cone-Rod Dystrophy

Generalized Constriction

Overall reduction in sensitivity across the entire visual field without a specific pattern.

Conditions: Leber Congenital Amaurosis, advanced RP, Bardet-Biedl Syndrome

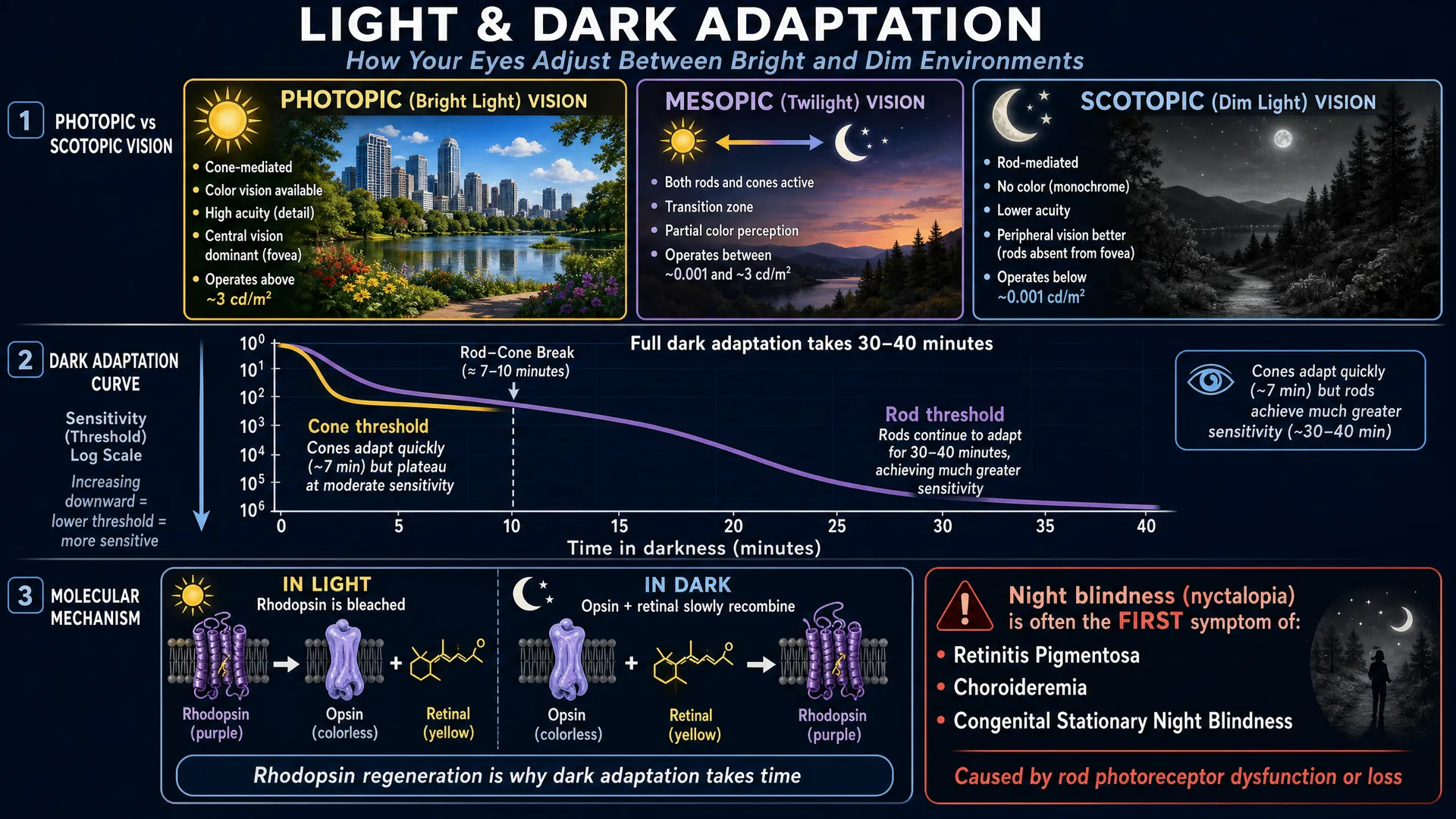

The eye can function across an enormous range of light levels — from bright sunlight to near-total darkness — a range of over 10 billion to 1. This is achieved through two systems: cones for bright light (photopic vision) and rods for dim light (scotopic vision). The transition between these systems is called adaptation, and it takes time — especially when moving from light to dark.

How the eye adapts between bright and dim environments, and why dark adaptation takes 30–40 minutes

Photopic

Bright light. Cone-mediated. Color vision. High acuity. Central vision dominant.

Mesopic

Twilight. Both rods and cones active. Partial color. Transition zone.

Scotopic

Dim light. Rod-mediated. No color. Lower acuity. Peripheral vision better.

Night Blindness (Nyctalopia) in IRDs

Night blindness — difficulty seeing in dim light — is often the first symptom of rod-affecting IRDs. It occurs because damaged or absent rods cannot perform dark adaptation. Conditions commonly presenting with night blindness include Retinitis Pigmentosa, Choroideremia, Usher Syndrome, and Congenital Stationary Night Blindness (CSNB). If you or your child experiences difficulty seeing at dusk, in movie theaters, or when transitioning from bright to dim environments, consult a retinal specialist.

How IRDs Affect Vision: A Summary

Inherited retinal diseases can affect virtually any aspect of visual function depending on which cells and structures are involved. The table below summarizes how different categories of IRDs impact the visual system.

IRD Category

Primary Cells Affected

Visual Symptoms

Rod Dystrophies (RP, Choroideremia)

Rod photoreceptors

Night blindness, peripheral field loss, tunnel vision

Cone Dystrophies (ACHM, BCM)

Cone photoreceptors

Color blindness, light sensitivity, reduced acuity

Macular Dystrophies (Stargardt, Best)

Macular cones & RPE

Central vision loss, difficulty reading/recognizing faces

Cone-Rod Dystrophies

Cones first, then rods

Central loss → peripheral loss, color then night vision

RPE Diseases (RPE65-LCA)

Retinal pigment epithelium

Severe vision loss from birth, nystagmus

Syndromic IRDs (Usher, BBS)

Multiple cell types + other organs

RP symptoms + hearing loss, obesity, or other systemic features
